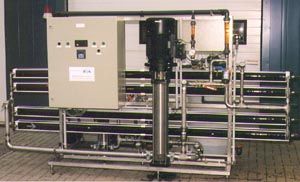

Brackish Water Desalination Units

Series Type: BWRO-M

BWRO-M plants are middle units. designed for desalination of brackish water with a TDS up to 5’000 mg/l to produce potable water.
These plants are very compact. pre assembled and wired. ready for operation on one steel frame work or in one container.
On site assembly and start up within short time.

Plant components

Coated Steel or Stainless steel skid or Container
Cartridge filter(s)
High pressure pump(s)
8”- RGF pressure vessels with Membrane elements
Switching and Controlling unit
Measuring devices: Manometers. conductivity meters. Flow meters
Pressure switching devices
Adjustment valve(s)

Optional Components

Stand by pump(s)	Dosing unit(s )	Raw water station
Multi Media filter(s)	Product water Station

Type	Product water [ m³/d]	Feed flow [m³ /d]	Energy consumption [kWh]	Frame			Container
Type	Product water [ m³/d]	Feed flow [m³ /d]	Energy consumption [kWh]	length [mm]	width [mm]	Height [mm]	Container
BWRO-M 100	100	6.0	6.8	2’000	1’000	1’800	1 x 20'
BWRO-M 150	150	9.0	9.8	4’000	1’500	1’800	1 x 20'
BWRO-M 200	200	12.0	12.0	4’500	1’500	1’800	1 x 20'
BWRO-M 250	250	15.0	13.5	4’500	1’800	1’800	1 x 20'
BWRO-M 300	300	18.0	18.0	5’000	1’800	1’800	1 x 20'
BWRO-M 350	350	21.0	21.0	6’000	2’000	1’800	1 x 40'
BWRO-M 400	400	24.0	24.0	6’000	2’000	1’800	1 x 40'
BWRO-M 450	450	27.0	27.0	7’000	2’000	2’000	1 x 40'
BWRO-M 500	500	30.0	28.5	7’000	2’000	2’000	1 x 40'

Operation Conditions

TDS of raw water up to	:	Up to 5’000 mg/l
Required raw water Pressure	:	min. 2 bar
Raw water temperature	:	2 – 40 °C
Salt Rejection	:	98 – 99 %
Operation Pressure	:	0 – 25 bar
Recovery	:	60 - 70 %
